The first release of 2015 sees the introduction of Advanced technical data (titled “Relevant technical data”) which displays more in-depth linked data with diagrams and locations. Available for users with an active Internet connection you can toggle between the two levels of information.
GRP Synchro now allows networks of Jaltest installations to share fleet and customised brand data for quicker vehicle selection and centralised reporting.
Trailer programming is now a much quicker process with more straightforward data entry and a refined workflow. A multiple choice interface guides the less confident technician through the decision making processes required to undertake the process.
Euro 6 support continues to grow; miscellaneous improvements can be seen in iParts, ETM & GRP modules and Common Rail Systems benefit from gorgeous dashboards.
Did we mention the 219 new brands yet, or the 4,167 new models and 35,810 new systems? If you’ve been using Jaltest for a while you might be getting used to the comprehensive coverage improvements seen on each release.
New Software functions

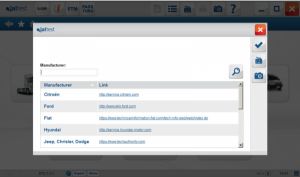

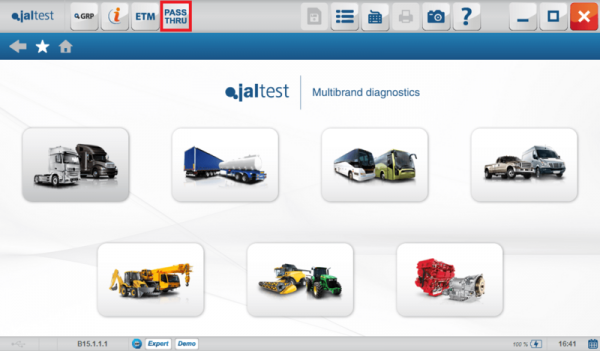

Pass thru capability *

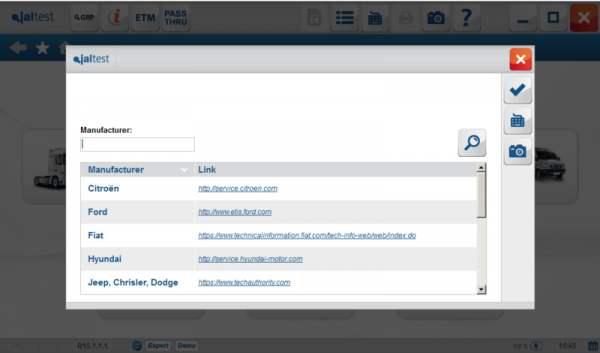

V8 Jaltest Link diagnostic multiplexers are pass thru enabled so you can use manufacturer’s data to programme ECUs. The new Pass Thru button displays handy hyperlinks to all of the available data portals.

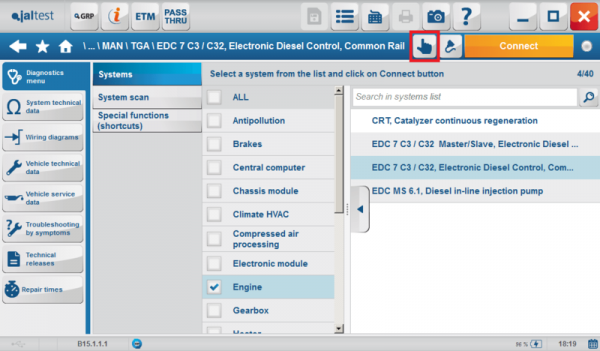

New order for main toolbar & “Fault Code Information” relocated

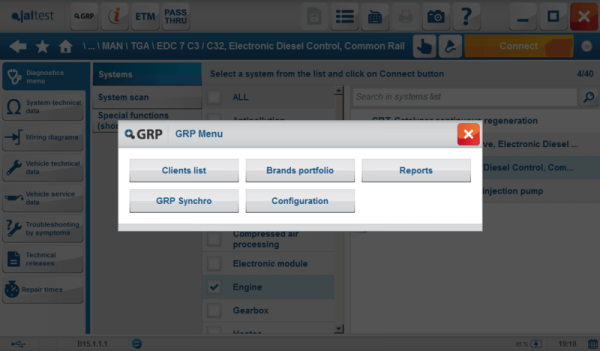

GRP Synchro *

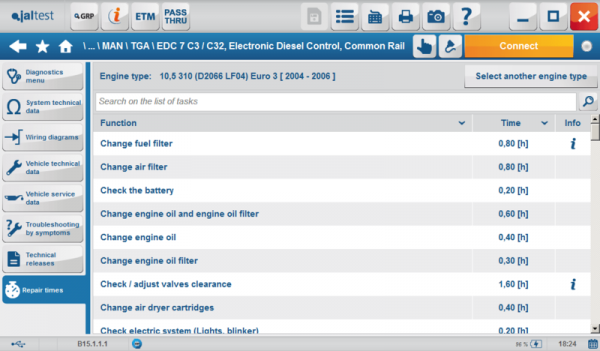

Repair times addition *

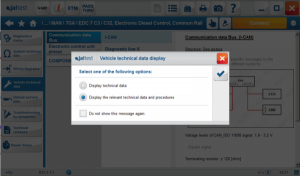

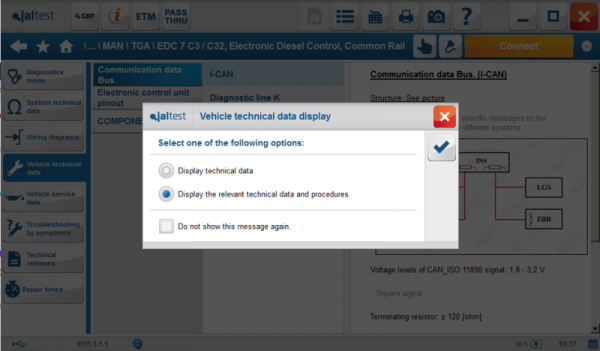

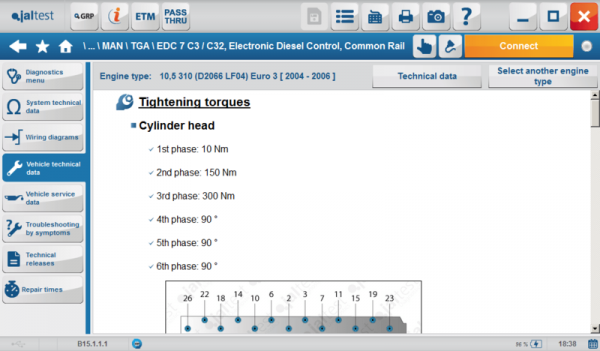

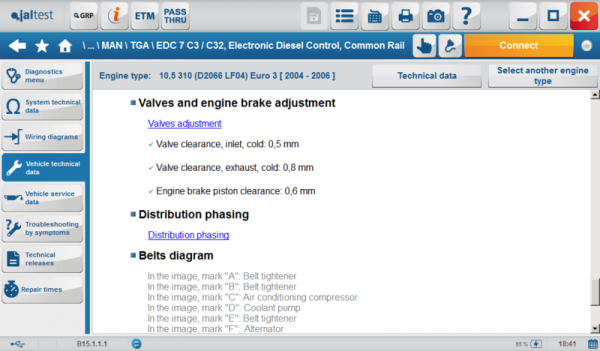

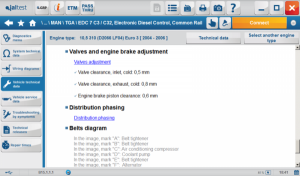

Advanced technical information *

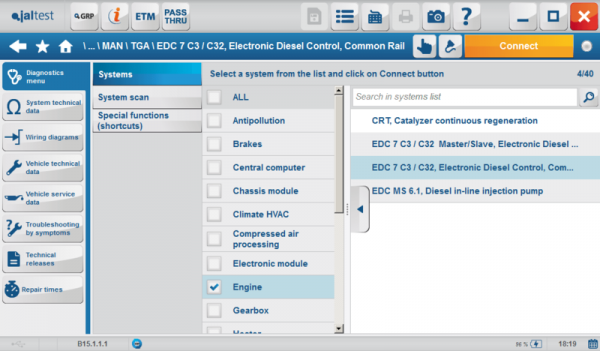

Display enhancements

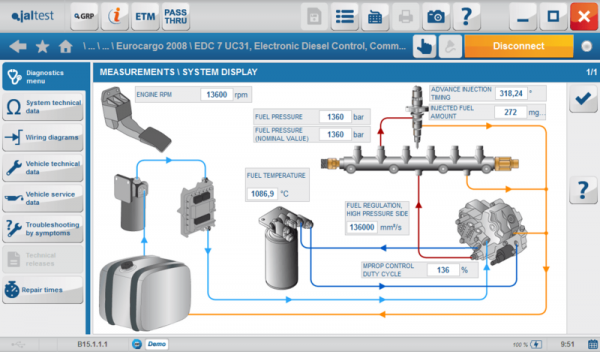

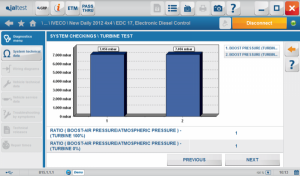

New ETM diagnostic functions
New Diagnostic functions
DAF Trucks
Advanced content summary
Euro 6 Models
- SAC (Smart Air Supply Control) – Technical data and operation scheme
- EMAS (Electro-hydraulic Multi Acle Steering) – Operation scheme
- VIC 3 (Vehicle Intelligence Centre) – Wiring diagram, several configurations CF, XF, LF etc
Coverage improvements, new systems and functions
XF95
- UPEC (Unit Pump Electronically Controlled) – Speed limit modification
XF105
- VIC 2 (Vehicle Intelligence Centre) – Parameter configuration incl. PTO and vehicle speed for special applications
- VIC 3 (Vehicle Intelligence Centre) – MCS (Menu Control Switch) test
- EAS/EAS-2 Denox 1.x (Emission Aftertreatment System) Unknown errors have been added
Euro 6 Models
- PCI (Paccar Common-Rail Injection)
- Diagnosis: Warning about the list of errors (PCI + EAS)
- Engine trip data and total data register (reading and reset): distance, engine operation time, fuel condumption and average speed.
- Rail pressure control valve calibration
- EAS-3 Denox 2.2 (Emission Aftertreatment System)
- Adjustments of some important functions and measurements including AdBlue system purge, heater activation etc.
- ELC (Electronic Light Controller)
- System configuration of parameters like fog lights & trailer lights etc.
- EBS 3 (Electronic Braking System)
- Pressure tests, component activation
- VSC (Vehicle Stability Control) calibration
- Functions configuration e.g. vehicle retention, predominance braking pressure
- VIC 3 (Vehicle Intelligence Centre)
- Parameter configuration incl. PTO and vehicle speed for special applications
- MCS (Menu Control Switch) test
- IVECO Trucks
IVECO Trucks
Advanced content summary
Euro 6 Models
- EDC 17 CV41 (Engine Control System)
- Technical data , wiring diagrams adn component location images including Denox 2.2 Aftertreatment system
Eurocargo
- All models
- Diagnosis socket location pictures have been updated and improved
- EDC 7 UC31 Euro 4/5 (Engine Control System)
- Tecnical data and fuel system scheme, new component location images for engine type F4A (4 & 6 cylinder)
Trakker
- 2013 Models
- Systems and new connections have been created adding technical data and wiring diagrams.
Coverage improvement, new systems and functions
Euro 6 models
- EDC 17 CV41 (Engine Control System)
- Development of injector coding
- Activations and system check tests (including Denox 2.2 Aftertreatment system)
- IVECONNECT (Iveco Telematic Infotainment System)
- Activations, maintenance functions and calibrations have been developed
Eurocargo Euro 6
- ABS Wabco E4.5 / E8
- IC (Instrument Cluster)
Euro 5 models
- EBS2 (Electronic Braking System)
- Calibration of the ESC (Electronic Stability Control)
MAN Trucks
Advanced content summary
Euro 6 models
- Technical data, wiring diagrams and operation schemes in some systems of these new models like EDC 17 MAN& Voith PriTarder
- ECAS (Electronic Control Air Suspension) wiring diagram coverage has been completed by reference (e.g. Ref. 446 055 301 0 – ECAS 4×2 N)
Coverage improvement, new systems and functions
Euro 6 models
- EDC 17 (Engine Control System)
- AdBlue NONOX Grundfos system – New mea
- Radio Navigation MAN – New development (also Euro4/5)
Mercedes Benz Trucks
Advanced content summary
Euro 6 models
- Technical data, wiring diagrams and operation schemes in some systems of these new models like MCM for Atego WDB967 including component location images by engine (OM934, OM936 or OM471 in Actros 4)
Actros MP2
- Pending technical information has been added in various systems. E.g. EAPU (Electronic Air Process Unit & RDK (Tyre pressure control system)
Unimog
- Improvements to new Euro 6 models (UGE and UHE series) where systems and new connections have been created. In addition, Unimog models are classified by VIN number for easier selection.
Econic
- Improvements to new Euro 6 model Econic WDB956 where systems and and new connections have been created.
Coverage improvement, new systems and functions
Euro 6 models
- MCM (Engine Management Control Module) – Injector coding developed
Actros, Atego & Axor
- WS (Maintenance system) – Configuration: Activation and deactivation of services
- MR (Engine system) – Oil consumption measurement test.
- BlueTec (Aftertreatment system) – NOX sensor measurments
Renault Trucks
Advanced content summary
Euro 6 models
- Technical data, wiring diagrams and operation schemes in some systems of these new models like EMS (Engine Management System) including component location images by engine (DTi13, DTi11), transmission TECU, brakes EBS or VMCU (Vehicle Master Control Unit)
Coverage improvement, new systems and functions
Euro 6 models
- RCIOM (Rear Chassis I/O Module)
- This system manages the pneumatic suspension, the rear steering axle, the differential lock in the rear axle, the bogie axle, the rear external lights and trailer functions.
- FCIOM (Front Chassis I/O Module)
- This system manages external lights, the windscreen and external temperature sensors.
- CCIOM (Central Chassis I/O Module)
- This system manages the generator, the manual transmission, the hydraulic device, the differential lock and the PTO.
- DTCO (Tachograph)
- DDM (Driver Door Module)
- PDM (Passenger Door Module)
- LPOS (Lane Positioning Sensor)
- FLS (Forward Looking Sensor)
Scania Trucks
Coverage improvement, new systems and functions
R, P & G Series
- EMS XPI (eXtra Pressure Injection)
- Two particulate filter tests, one indicates if the regeneration process is necessary and the other indicates the sulphur content. In addition DPF regeneration hs been developed and connected with the ash and cinder content reset functions.
- Important basic adjustments have been added to the system including injector adjustment and PTO (Power Take Off)
- AdBlue EEC3 (Exhaust Emission Controller) – in Euro 6 models
- New activations: Dosing unit heater and dosing valve
- AUS3 (Audio System) – new development in Euro 6 models
- ODR (Operational Data Register) – new development
- Data register: distance, engine operation time, engine load, average speed, temperatures and pressures
Volvo Trucks
Advanced content summary
- ECS (Electronic Control Suspension)
- Important information for the calibration of height sensors has been added including a table of driving leveles by chassis and model.
- EBS (Electronic Brake System)
- Important configuration information which should be selected when the modulator tests are performed explaining the difference between pusher and tag axles.
Coverage improvement, new systems and functions
Euro 6 models
- RCIOM (Rear Chassis I/O Module)
- FCIOM (Front Chassis I/O Module)
- CCIOM (Central Chassis I/O Module)
Other Brands
Advanced content summary
Volkswagen
New Euro 5 models with MAN engines have been added:
- Delivery
- Worker
- Constellation
SISU
New brand with Polar I and Polar II models based on MB technology.
Trailer Systems
Advanced content summary
Trailer EBS Gen 2
- CN (Compatibility Number) and PN (Part Number) coverage table added to the connection of the system to identify those in which parameters may be modified.

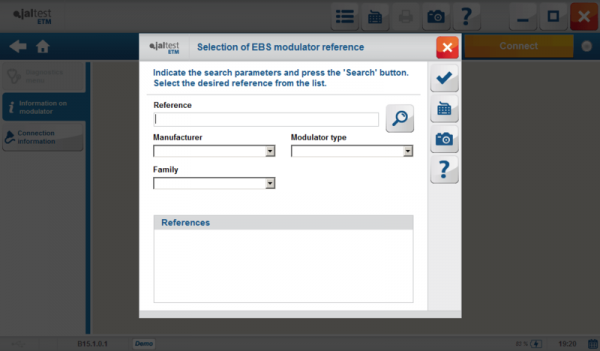

- Paramater modification in Trailer EBS for Wabco, Knorr and Haldex is is much improved. For each programming step the current value of of the ECU is shown and the new value can be entered directly. A parameter datasheet picture displays specific parameters.
Coverage improvement, new systems and functions
HALDEX EB+
- Haldex EB+ 2nd Gen
- Improvements and new parameters configuration. Extra data for the lift axle, internal auxiliary configuration, calibration of the internal acceleromoter, analog AUX 4 and AUX 5.
- Haldex EB+ 3rd Gen
- AUX 2 and AUX 3 input/output connections in Premium modules enables a second output.
LCV
Advanced content summary
- Improves the number of special functions (shortcuts)
Multicar
- More models, more systems and new connections have been created
FORD
- More models have been created E.g. Ranger, Escape etc.
New technical information and wiring diagrams for most LCV brands. Technical releases for Service Reset manual process. E.g. Fiat Ducato & Citroën Jumpy Improved the added INFO in some important functions like DPF Regeneration in EDC 16 CP31 of Mercedes Benz Sprinter.
Coverage improvement, new systems and functions
FIAT
- New system EDC 8F3 CF5 V2 CAN in Ducato (2011 – ) F1AE3481 engines
- New system Service 4.0 in Ducato
- Development of two sepcial functions: remote key learning and key recording process in body computer ZE 2.0.1
IVECO
- New system Service 4.0 in Daily 2012. The special function to erase the service memory has been added using the developer advanced mode

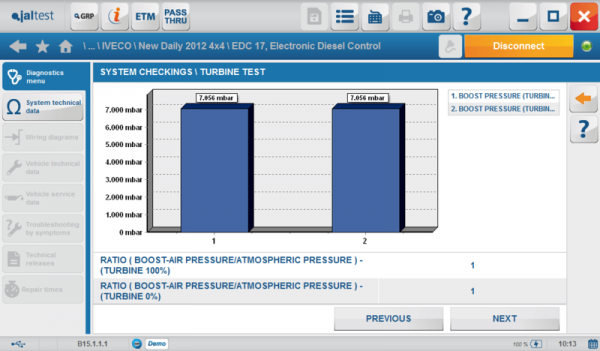

- Adjustments of some important functions and measurements in the system EDC 17 in Daily 2012 E.g. Compression test & VGT test
- EDC 16 C39 in Daily 2006. Adjustments in tests and the maintenance functions such as DPF regeneration
Mercedes
- EDC CDID2 engine type OM651 in Sprinter. Adjustments in the maintenance functions such as DPF regeneration
Vauxhall/Opel, Nissan
- System ABS 430
Asian Brands
Advanced content summary
Isuzu + Technical releases for maintenance service reset – a manual process for N Series
Coverage improvement, new systems and functions
Mitsubishi Fuso
- Development of EDC 17 CP15 system in Canter Euro 5/EEV
Nissan
- Improvements in EDC ECCS system in Cabstar with YD25/ZD30 engines
Coach and Buses
Advanced content summary
Irisbus
- New Euro 6 models, systems and new connections have been created
Mercedes Benz
- Models now classified by VIN affording easier selection
- Capacity bus added with 4 axles
Scania
- Euro 6 models gain Aftertreatment and suspension systems
- These models link the specific Euro 6 engine type with technical data
- New models added
- Citywide
- Touring
- Higer A30
- OmniExpress
King Long
- More Euro 6 models, systems and new connections have been included
VDL Group
- More models, systems and new connections have been included
Bosch Rexroth BODAS
- New systems in Solaris and Solbus
- System Manufacturer selection including wiring diagrams and technical data for different ECU series (E.g. 21 Series & 30 Series etc)
Coverage improvement, new systems and functions
- ZF Ecolife transmission – operational data and measurements
- ADM 2 (Automatic Drive-train Management) – parameter configuration
- System based on MB technologies (also installed in OHV)
New Cables
JDC 516 A
Landini adapter cable also McCormick & Valpadana agricultural vehicles (AGV)
JDC 520 A
16 pin Valtra adapter cable
JDC 521 A
Volvo Penta diesel adapter cable for Kalmar Off highway vehicles and Franz Kleine agricultural vehicles (AGV)
JDC 522 A
Bosch Rexroth adapter cable
for Solaris and Solbus Coaches
*Internet connection required
To deliver rich content and new features an active Internet connection is required for some 15.1 features where this was not previously the case. The following features all require an Internet connection:
- Jaltest iparts / Pass through
- Troubleshooting by smptoms
- Troubleshooting by error codes
- Technical releases
- Repair times
- Advanced/Relevant technical data
Updating your software
Please log in to your www.jaltest.com account and download the software from the update area.
